USB KVM SPLITTER

Allows 2 users to control 1 USB computer and connect 3 USB devices.

Also known as: USB splitter and hub, built-in hub, USB hub, peripheral device hub and splitter,
keyboard monitor mouse splitter, USB keyboard splitter, reverse KVM switch.

VOPEX
VOPEX-USBV-2 (Front & Back)

Features & Applications

The VOPEX™ USB KVM splitter with built-in USB hub allows two users (two USB keyboards, USB mice and VGA monitors) to access one USB enabled computer and up to three USB devices (printers, scanners, security cameras, etc.).
  • Multiple users can enter data into the same program.
  • Both low speed and full speed USB devices are supported.
  • USB 1.1 compliant.
  • Supports Plug-n-Play specifications.
  • Supports international keyboard layouts in auto-detection mode.
  • Compatible with USB PC, SUN and MAC computers.
  • Built-in hub for multiple USB devices.
  • Access one computer from multiple locations.

Specifications

Hosts

  • Male 15-pin HD connector.
  • Female USB Type B connector.
  • SUN Blade™ 100, SUN Blade 1000, SUN Ray™, SUN Fire™ 280R, and SUN Fire V20z.
  • PCs with USB-enabled OS (Win 98/2000/XP) and USB ports.
  • PCs with USB-enabled BIOS (legacy USB support) and USB ports.
  • Supports MAC G4, G5 and Xserve.

Monitor

  • Female 15-pin HD connector.
  • Crisp & clear 1900x1200 resolution.
  • Bandwidth is 150 MHz.


Control Methods
  • Press Mode button to cycle through all four modes. LEDs indicate which mode is selected.
  • User 1 Mode - Only User 1 can type or move the mouse.
  • User 2 Mode - Only User 2 can type or move the mouse.
  • Inst Mode - Keyboard or mouse activates immediately.
  • Delay Mode - Locked out user must wait five seconds after last keystroke or mouse movement occurs on active user.



Power

  • 110 or 220 VAC at 50 or 60 Hz.

Devices

  • Female USB Type A connectors for connection of keyboard and mouse.
    • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse. Gyration keyboard/mouse and Crystal Vision keyboard with touchpad.
    • Keyboard and mouse are hot-pluggable.
  • Three female USB Type A connectors for connection of USB peripheral devices (printers, scanners, security cameras, etc.).

Dimensions

  • WxDxH (in): 8x6.3x2.5

Cables

  • Three-foot female 15HD, male USB Type B to male 15HD, male USB Type A cable included.

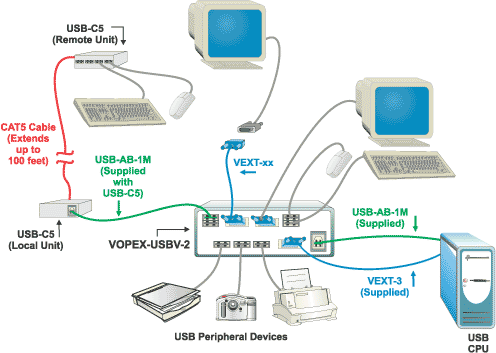

    VOPEX application

    Two users access one USB computer and three USB devices.
    User 2 is extended 100 feet.



Available USB KVM Splitters

NTI Part #
VOPEX-USBV-2

Available USB Extenders

NTI Part # CPUs
USB-C5 PC/SUN
USB-C5M MAC

Male to Female VGA Cables

NTI Part # Length m.
VEXT-25 7,5
VEXT-35 10,5
VEXT-50 15
VEXT-75 22,5
VEXT-100 30
